LINE-PUMPS

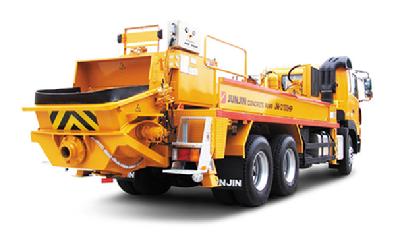

JUNJIN LINE PUMP

LINE PUMP

SPECIFICATIONS

PUMP
		JMP-90H	JFS-12H	JM2100HP
Output	rod side	90 m3/h (118 yd3/h)	115 m3/h (150 yd3/h)	100 m3/h (132 yd3/h)
	piston side	60 m3/h (78 yd3/h)	72 m3/h (94 yd3/h)	70 m3/h (90 yd3/h)
Pressure	rod side	71 bar (1030 psi)	92 bar (1334 psi)	153 bar (2218 psi)
	piston side	106 bar (1536 psi)	148 bar (2146 psi)	224 bar (3248psi)
Concrete cylinder diameter		200 mm (8")	200 mm (8")	200 mm (7'8")
Concrete cylinder type		Hard chromed	Hard chromed	Hard chromed
Stroke length		1400 mm (55")	2100 mm (83")	2100 mm (83")
S-tube size		8" x 7"	8" x 7"	8" x 7"
Main oil pump		Kawasaki	Rexroth hydromatik	Kawasaki
		K3V140S	A11VO260	Tandem K3V180DTH
Hydraulic system pressure		350 bar (5075 psi)	350 bar (5075 psi)	350 bar (5075 psi)
Lube system (hopper)		Automatic	Automatic	Automatic
Switching system		Hydraulic	Hydraulic	Hydraulic
Hopper capacity		Easy clean 600 L (158 G)	Easy clean 600 L (158 G)	Easy clean 600 L (158 G)
No. of strokes/min		34	29	25
Output control range		11(14)~90 m3/h	16(21)~115 m3/h	11(14)~100 m3/h
Outrigger Rear		Vertical Extension	Vertical Extension	Vertical Extension

GENERAL
	JMP-90H	JFS-12H	JM2100HP
Wire remote control	standard	standard	standard
Vibrator	Option	Option	Option
Water pump	Rust proof hydraulic power 20 bar (290 psi)	Rust proof hydraulic power 20 bar (290 psi)	Rust proof hydraulic power 20 bar (290 psi))
Water tank	600 L (158 G)	600 L (158 G)	600 L (158 G)

LINE PUMP JUNJIN

LINE PUMP
